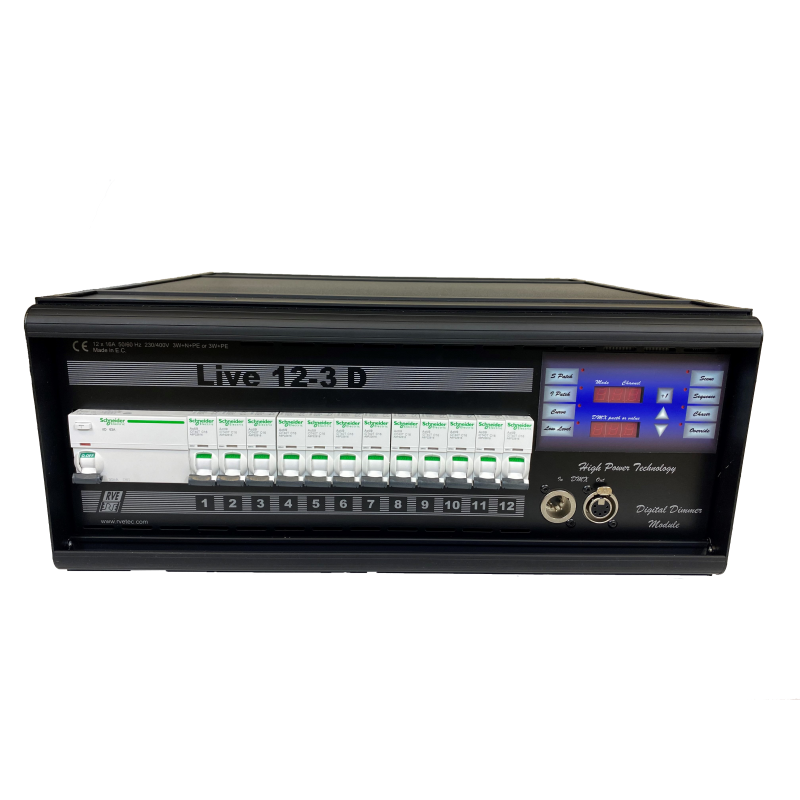

LIVE

LIVE dimmerpacks will allure you by their unique, original andintelligent concept.
They are designed for uses in Theatres, TV studios, Touring and Exhibitions.
- Easy to use : A control panel with 2 displays and 8 keys gives access to all functions directly.

Fastt and easy way tto use !!

- Available models :
6 orr 12x3 kW and 3 orr 6x5 kW
- Portable or 19 inches rackable (4U Height).
- Presets and sequences programming by capture of the DMX signal.
- Heavy power component.
- Manual or autonomous presets and sequence playback with time adjustment.
- Protected power supply.
- Autosaving of parameters.
- Total or partial locking of the control panel allowing to limit the advanced functions access.
- Great speed of implementation
- Easy maintenance and RVE reliability.

MAIN FEATURES

- Supplied with carriage handle and 19 inches adaptors
- against power supply default
- Very high definitionsmoothing: 32000 steps
Serial patch selection
Individual patch selection
Curve selection: linear, halogen, fluo or NoDim
Fluo threshold preset from 0 to 50%
Programming or play back of 8 programmed or DMX captured presets
Programming or play back of a 16 step sequence
Play back of 9 pre-programmed chasers with speed selection
Play back of the overriding programmed levels

TECHNICAL SPECIFICATIONS

Power supply : 3 P, N, E, 230/400 Vac - 50/60 Hz
Wiring : cable lenght: 1m50 without sockets
Indicator : Power supply default and overheat default
Outlets : 6 or 12 double schuko 10/16A for 3 kW 3 or 6 CEE 32A for 5 kW
Options: Swiss, Socapex, Harting, hard wired.
Main protections : Option: MCB 4x32A or 4x63A or RCCD switch 4x32A or 4x63A 30mA
Channels protection : MCB unipolare + neutral
Control : DMX512 on XLR 5 connectors (1 In / 1 Out) Last level memorised
EMC compatibility : According to EN 54014 / 60669 / 60439 standard with reinforced attenuation
Compatible loads : Incandescent, halogen, low voltage*, fluo*
Cooling : By noiseless fan, RCS system
Environment : Temperature 0°C to +40°C
Humidity 0% to 90%
Protection degree : IP 30
* Electronic transformers or ballasts : contact us to check compatibility
